Vogel Test

Vogel Conflict Drinking test (Vogel Test) is a classic protocol for screening of anxiolytic effects of drugs on small laboratory animals like rat and mouse. In this test, rodentsare deprived of water and place in the chamber wheresimultaneously punishment of a mild shock given whenever fluid is retrieved. For deprived animals suffering in anxiety will have significant reduction of water consumption.

Overview

Vogel Test

Vogel Conflict Drinking test (Vogel Test) is a classic protocol for screening of anxiolytic effects of drugs on small laboratory animals like rat and mouse. In this test, rodentsare deprived of water and place in the chamber wheresimultaneously punishment of a mild shock given whenever fluid is retrieved. For deprived animals suffering in anxiety will have significant reduction of water consumption.

Features

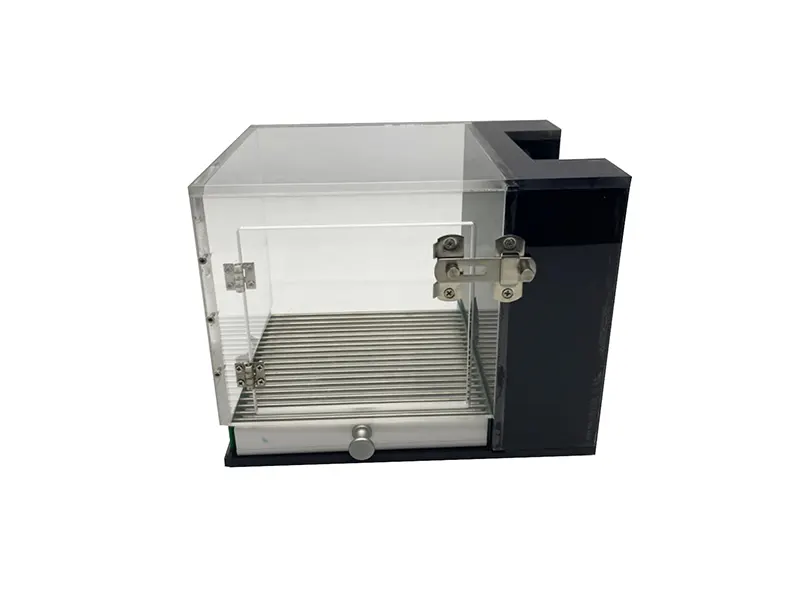

  • Our Vogel Test consists of a plexiglass chamber associated with a grid floor.
  • The wall of the chamber is provided with a bottle spout for drinking purpose.
  • There are two electrodes attach to the chamber, one with shock grid and one with water bottle.
  • The number of licks of the spout is counted.
  • Usually, after the animal is shocked, they will have the anxiety effect, and the number of water licking is reduced significantly or turn to 0, but the animal that has with anti-anxiety drugs with reflect a certain anti-anxiety behavior according to the drug efficacy, that is, the animal keep on relatively normal water licking.
  • Through our software, parameters such as water licking and electric shock are recorded, and the effect of anti-anxiety drugs can be obtained by analyzing the experimental results.
Specification

Detailed Information

Technical Specifications

  • Support 1-16 animals of Vogel Test.
  • High quality LCD screen to achieve clear display and easy operation.
  • Record   water   conflict   experiment    parameters,   such   as    licking/shock   ratio,  stimulation duration, recording interval, licking threshold.
  • The current state of animal drinking water and electric shock is visually displayed  in the experiment.
  • Licking/shock ratio range: 1-100
  • Electric shock duration: 0-5s
  • Stimulation intensity: 0.05-5mA
  • No blind area electric stimulation: Adopts pulse constant current voltage limiting  stimulation mode, the intensity range 0.05-5mA, each grid rod is independent to  achive no-scrambler and no blind area, thus to ensure effective shock stimulation.
  • Record interval: 0-60 minutes
  • Experiment duration: 0-60min
  • Experiment chamber  is convenient and easy to use, metal bottle nozzle is easily attached through the magnetic guide electrode.
  • 200 groups data can be saved and freely browsed.
  • Data can be exportable to USB disk in CVS. format
  • Real-time  laboratory  temperature  and  humidity  can  be  monitored through  our  high-precision temperature and humidity sensors.

Size

  • Controller: 31*21*11cm
  • Chamber (Mouse): 22*22*32cm        (Rat): 29*29*32cm
How to Order

Ordering Information

Item No. Product
SA221R Vogel Test for Rat
SA221M Vogel Test for Mouse
