Treadmill for Mice and Rats

SA101Pro rodent treadmill is widely used for animal behavioral research, physiological study, biochemical, and molecular responses to both acute exercise stress and chronic exercise training. The automatic measurement of endurance, running distance, running time, number of shocks, shock time, current and exhaustion state are recorded in laboratory treadmill for mice and rats. Individual lane design and programming can benefit you for easy cleaning and accurate detection.

Adaptable: Treadmill for 5 Mice, Treadmill for 5 Rats, Treadmill for 5 Rats or 5 Mice, Treadmill for both 5 Mice and 5 Rats, Rabbit, Primates can be customized.

Get A Quote
Product
Overview Specification Reference How to Order
Overview

Treadmill for Mice and Rats

The rodent treadmill running is a noninvasive method to evaluate fitness capacity in a longitudinal or cross-sectional manner.

It enables endurance testing simultaneously to assess a wide variety of physiological systems including the cardiovascular, respiratory, metabolic, and neuromuscular systems.

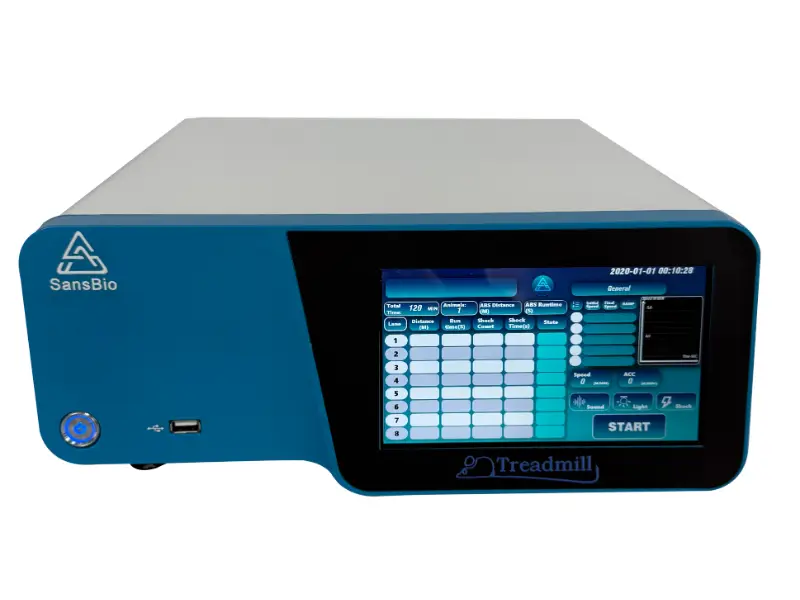

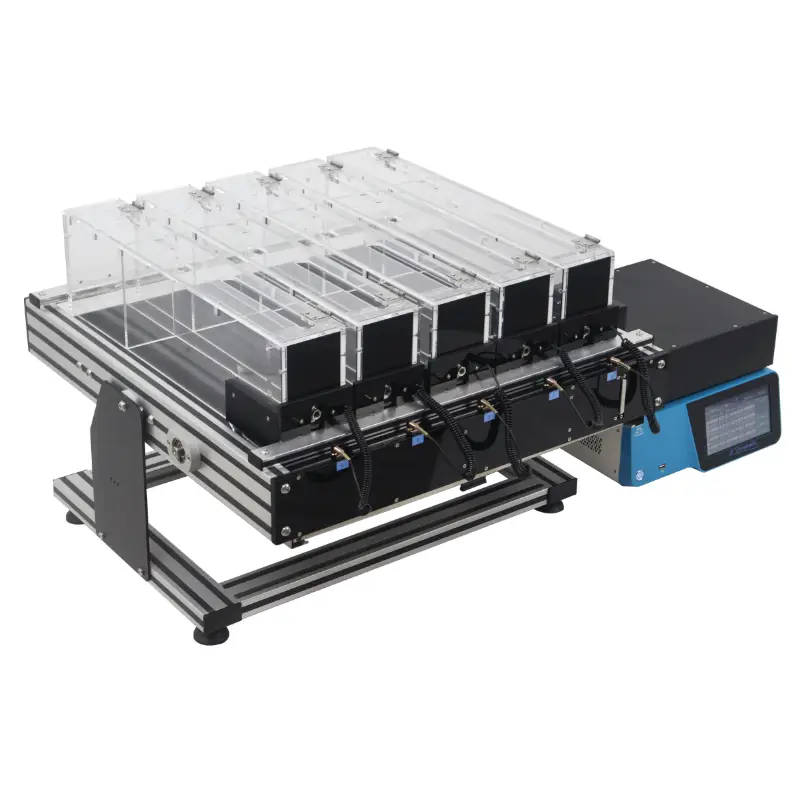

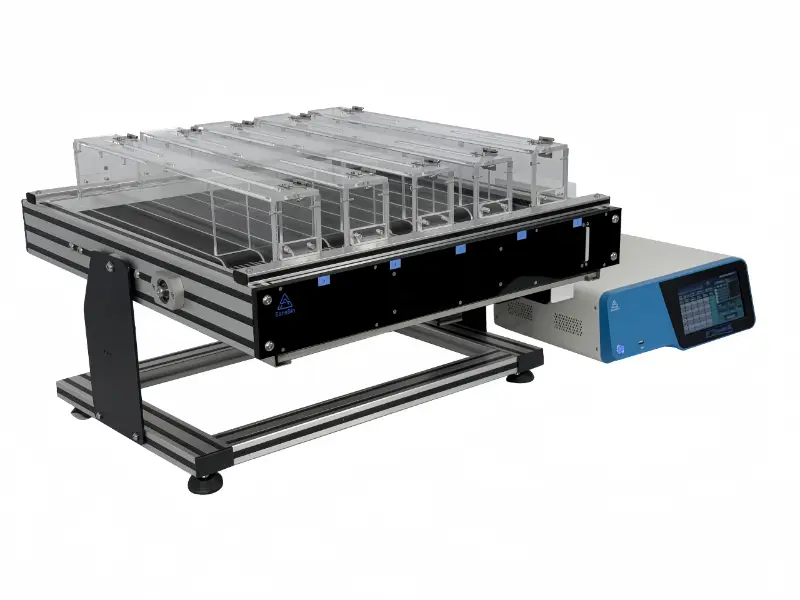

Our Mouse and Rat Treadmill consists of the main unit, incorporating the motor drive, the shocker, the control unit with 7 Inch touch screen, the running belt enclosed within a chamber constructed of acrylic and aluminum. The chamber contains a shock grid, which serves as an aversive stimulus to motivate exercise.

Features & Benefits

Features Benefits
One control unit and treadmill frame for both rats and mice Cost saving and easily switch from Rats to Mice

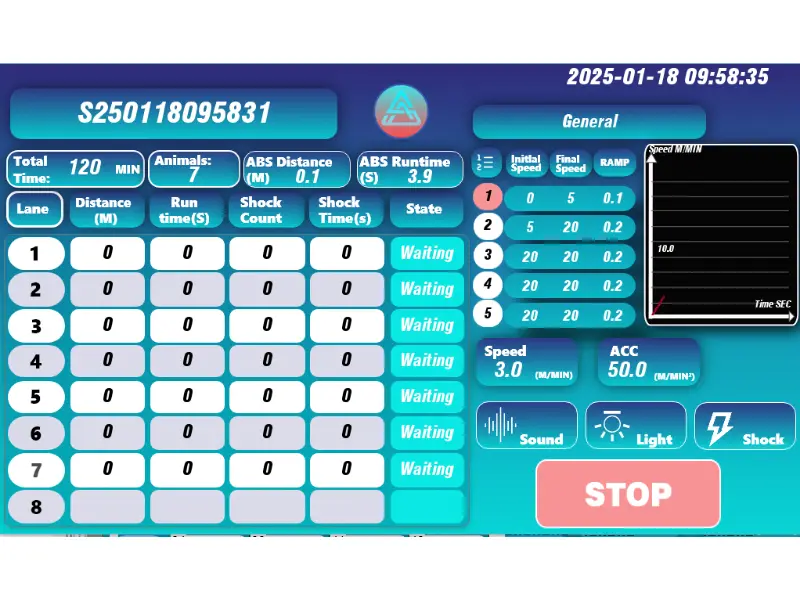

7-inch IPS 1024*768 HD display, visible Angle 178° Larger display for easily data review and checking.
Motion modes: Uniform speed, uniform acceleration, uniform deceleration, acceleration and deceleration mixed mode Meet various demand of experiment

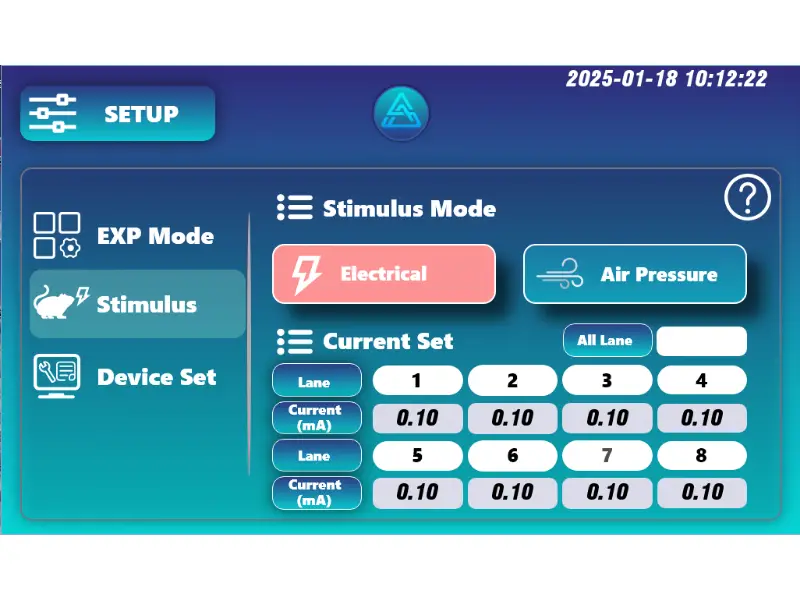

Shock: 9 pole pulse electric shock, 0.1mA~10mA adjustable No blind area in stimulating the rodents
Electric, Sound, Light, Airpuff is optional Both aversive and soft stimulation are available.
Five kinds of exhaustion mode Ensure self-protection mechanism for rodent, very suitable for Exhaustion & Fatigue experiment.
>1000 data save Larger volume of data store.
Specification

Detailed Information

Basic Specification

Application 5 Rats/5 Mice
Commands 7″ capacitive IPS LCD touch screen
Power 100-240 VAC, 50-60Hz
Sound Level < 60 dB (A)

Operation

Mode uniform speed, uniform acceleration, uniform deceleration, acceleration and deceleration mixed mode
Speed 0.1-100 m/min adjustable, resolution 0.01m/min
Acceleration 0.1~100m/min²
Start/Stop From the touch screen
Detection When touch the electric shock grid
Stimulation Pulse electric, sound, light
Shock 0.1mA~10mA adjustable, pulse electric shock
Sound 1000~10KHz frequency adjustable
Light 1~5000Hz frequency adjustable
Lane slope -25° ~25°
5 kinds of exhaustion mode Distance, Time & Shock
Results Distance, running time, number of shocks, shock time, current, exhaustion state, speed.
Data export By USB flash drive in csv or excel
Data save >1000

Physical Size

Mouse Treadmill Rat Treadmill
5 lanes 5 lanes
Overall size: 69.5×69.5×42.5cm (27.3×27.3×16.7 inch) Overall size: 69.5×69.5x44cm (27.3×27.3×17.3 inch)
Running belt size: 69.5×69.5×34.5cm (31.3×27.3×13.5 inch) Running belt size: 69.5×69.5×34.5cm (31.3×27.3×13.5inch)
Lane size: 61×8.5x15cm (LxWxH) Lane size:61×11.5×16.5cm (LxWxH)
Independent Lane Control Independent Lane Control
Shock grid size: 12x6cm Shock grid size: 12x12cm
Speed: 1-100 meter/minute
Lane slope degree -25° ~25°
Acceleration: Adjustable acceleration in 0.1 meter/minute increments
Adjustable current stimulus 0.01 – 10 mA
Treadmill controller: 32x34x12cm (length x width x height), weight: 7.5kg
Clear, removable acrylic maze walls and an aluminum frame

Note: Smaller size for Mouse Treadmill is available, 52*65*44cm.

Reference

Reference

1. Daytime-restricted feeding enhances running endurance without prior exercise in mice

https://www.nature.com/articles/s42255-023-00826-7

2. Cross-species metabolomic analysis identifies uridine as a potent regeneration promoting factor

https://www.nature.com/articles/s41421-021-00361-3

3. Stabilization of heterochromatin by CLOCK promotes stem cell rejuvenation and cartilage regeneration

https://www.nature.com/articles/s41422-020-0385-7

4. Aerobic exercise promotes the expression of ATGL and attenuates inflammation to improve hepatic steatosis via lncRNA SRA

https://www.nature.com/articles/s41598-022-09174-0

5. Moderate intensity exercise may protect cardiac function by influencing spleen microbiome composition

https://www.sciencedirect.com/science/article/pii/S2589004223027128

6. MicroRNA-224-5p nanoparticles balance  homeostasis via inhibiting cartilage degeneration  and synovial  inflammation for synergistic alleviation of osteoarthritis

https://www.sciencedirect.com/science/article/abs/pii/S1742706123003367

7. Elimination of senescent cells byβ-galactosidase-targetedprodrug attenuates inflammation and restores physicalfunction in aged mice

8. MOTS-c and Exercise Restore Cardiac Function by Activating of NRG1-ErbB Signaling in Diabetic Rats

9. LRRK2 Deficiency Aggravates Sleep Deprivation-InducedCognitive Loss by Perturbing Synaptic Pruning in Mice

10. HMGB1- Promoted Neutrophil Extracellular Traps Contribute to Cardiac Diastolic Dysfunction in Mice

11. Piezo1-mediated M2 macrophage mechanotransduction enhances bone formation through secretion and activation of transforming growth factor-β1

12. Cadmium exposure impairs skeletal muscle function by altering lipid signature and inducing inflammation in C57BL/6J mice

How to Order

Ordering Information

Item No. Product Description Components
SA101Pro-M Treadmill for 5 Mice Sound, light, electric stimulation, adjustable acceleration, different time section, separate lane, adjustable lane length, independent electric stimulation, independent timing for each lane, current can be set.
SA101Pro-R Treadmill for 5 Rats Same with SA101Pro-M
SA101Pro Treadmill for 5 Rats or 5 Mice Same with SA101Pro-M
SA101DM Treadmill for 5 Mice Sound, light, electric stimulation, adjustable acceleration, different time section, separate lane, adjustable lane length, independent electric stimulation, independent timing for each lane, airpuff stimulation)
SA101DR Treadmill for 5 Rats Same with SA101DM
SA101D Treadmill for 5 Rats and 5 Mice Same with SA101DM
