IVC Food & Drink Intake Monitoring System

IVC Food & Drink Intake Monitoring System

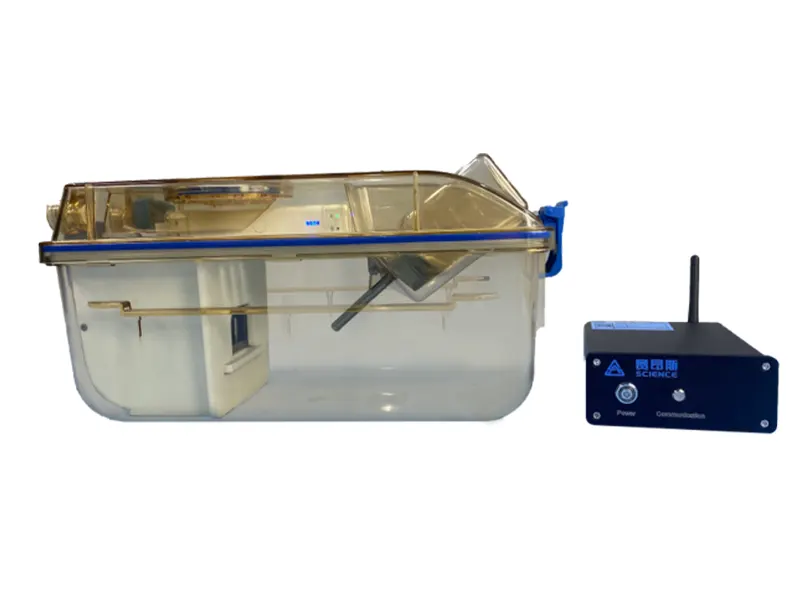

Our IVC Food & Drink Intake Monitoring System can collect the eating times, eating time, eating duration, drinking times, drinking time and drinking duration and make the statistics. The system can be installed directly in the IVC cage with wireless communication connection.This kind of research requires simultaneous experiments on a large number of animals, and our system supports 16 channels and maximum to 256 channels at the same time to collect and record data.

Features

• One channel can record drinking water and food intake status at the same time.
• Number of channels: 1-200
• High precision sensors to detect food intake events, ensure the accuracy of event detection and ensure the accuracy of timing.
• Weighting accuracy 0.01g, long-term 0-point drift less than ±0.05g.
• Container capacity: 30g.

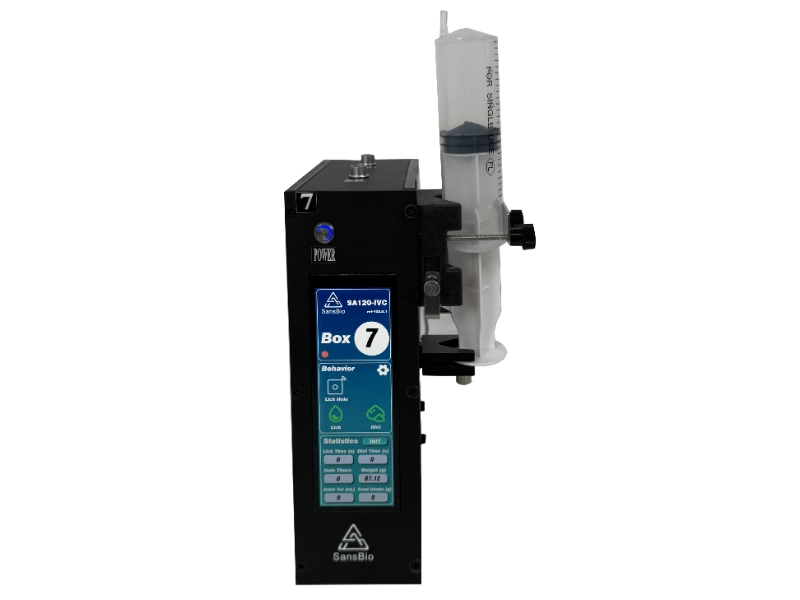

• Drinking water module uses a micro-injection pump to accurately replenish water, with an accuracy of 0.01ml.
• Injection pump: standard syringe 20-50ml inner diameter is available.
• Injection speed: 0.1-5ml/min.
• Support long-term test, and support food and water replenish during the test.
• Experiment time: 1-100000min.
• IVC cage for animal to well adapt and reduce stress reaction.

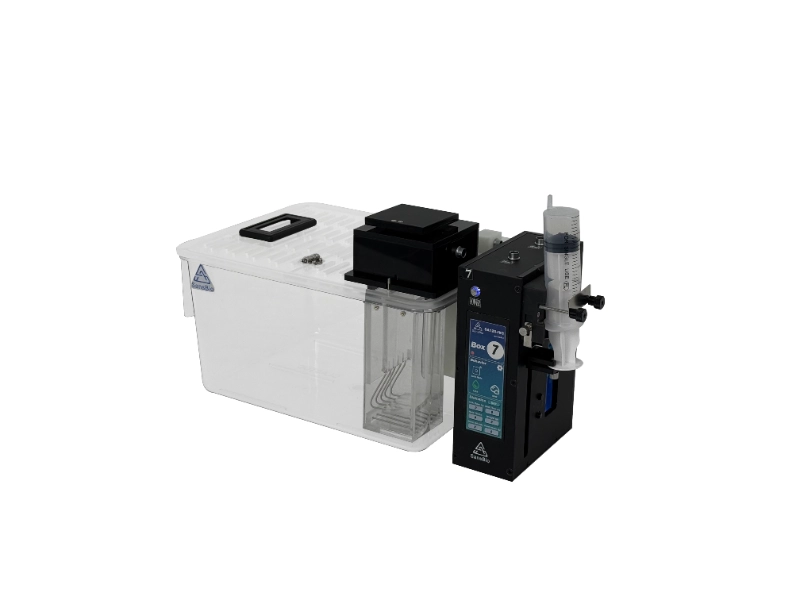

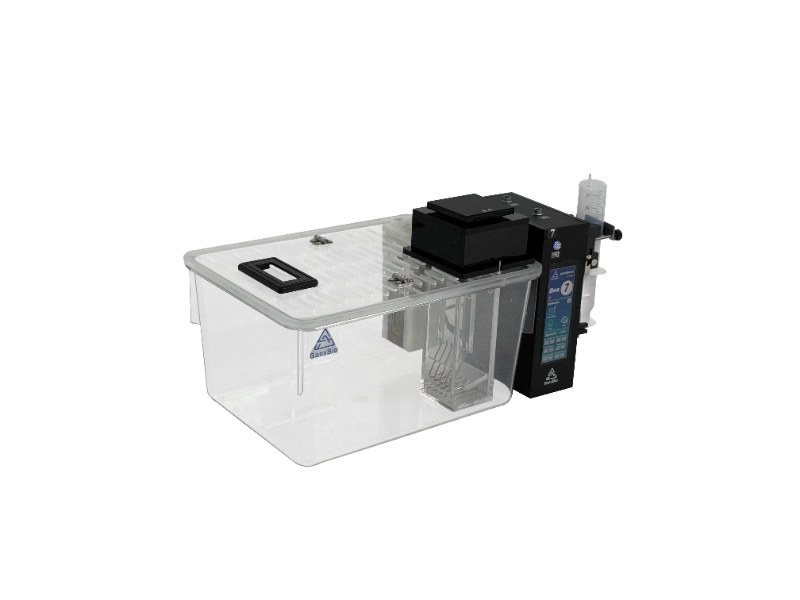

• Cage module: including power supply, food trough, bottle, food & drink detection, Module can be taken out which is convenient for cleaning.
• Wireless connection to ensure the tidy of the experiment.
• The software automatically filters the interference of liquid volatilization on the test data.
• Intertrial Interval for offline analysis: 1-60min.
